Wedge Uncoiler

Hayes Wedge Uncoilers are a 6-tonne capacity single capstan uncoiler operating using a hydraulic wedge system that provides a sturdy and reliable grip on coils.

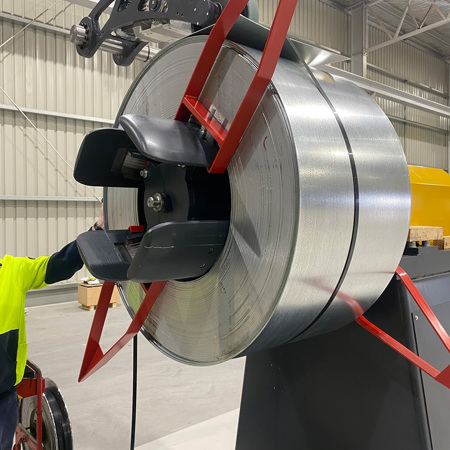

A 4-leaf mandrel mounted to the top of the Uncoiler body via two large heavy duty captive bearings expands and retracts to hold the coil via a hydraulically operated wedge and drawbar system powered by a dedicated onboard hydraulic powerpack mounted inside the Uncoiler body.

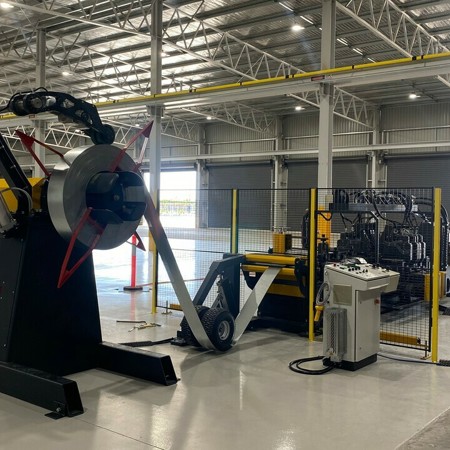

The Uncoiler is controlled by a standalone operator console that also houses all necessary electrical equipment and can be operated in manual or automatic mode in tandem with Rollforming machinery.

ENQUIRE NOW

Wedge Uncoiler Standard Components Details

Uncoiler Body

Welded steel construction painted with lacquer finish.
Removable guarding covering the main drive and pinch points.

Uncoiler Mandrel

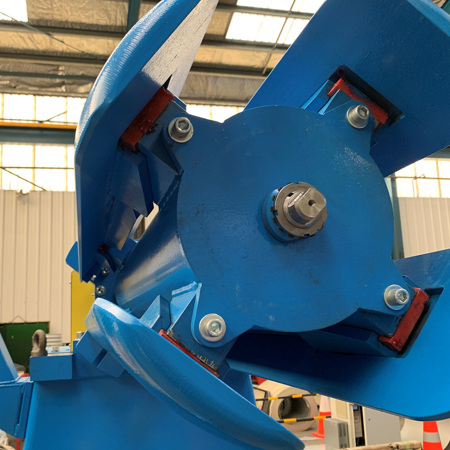

Four solid steel palm plates attached to mandrel shaft via multiple steel linkages.
Expand/retract powered via hydraulic piston and an on board self-contained power pack.
Pressure-reducing valve minimizes potential damage to coil bore.

Uncoiler Drive

Rotational power is provided to the uncoiler mandrel via VFD Electric gearmotor coupled via heavy-duty chain and sprocket drive.
Variable payoff speed controlled via overhead laser.
Can run in reverse in combination with a snubber arm to allow for the re-winding of coils.

Uncoiler Specifications

Hayes Wedge Uncoilers are available in multiple configurations including a 1250mm wide mandrel for wider coils and narrow versions for use with purlin coils. Please contact Hayes International for more information on an Uncoiler to suit your needs.
