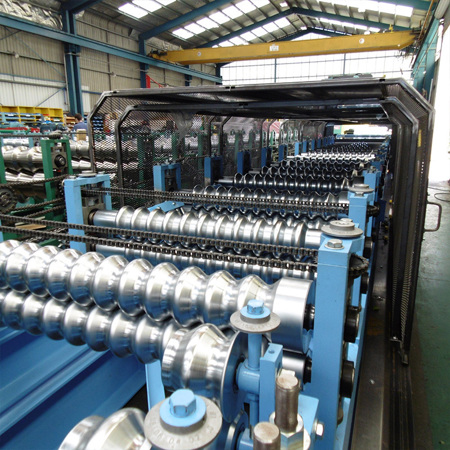

Hayes Rafted Rollformer

Available in a single-level configuration, Hayes Rafted Rollformers are an efficient way to accommodate a wide range of profiles when floor space is limited.

The Hayes Rafted Rollforming Line utilizes a common base and drive chassis unit, control system and transmission, together with demountable forming rafts. Each has dedicated tooling to manufacture a range of profiles according to customer specifications.

The drive and electrical connections to the raft are fitted with quick-release type couplings to facilitate quick changeover. The raft modules have balanced lifting points and are designed to be lifted on and off the chassis in sections. This gives extra flexibility to add more profile options to the existing raft base in the future.

ENQUIRE NOW

Rafted Rollformer Standard Components Details

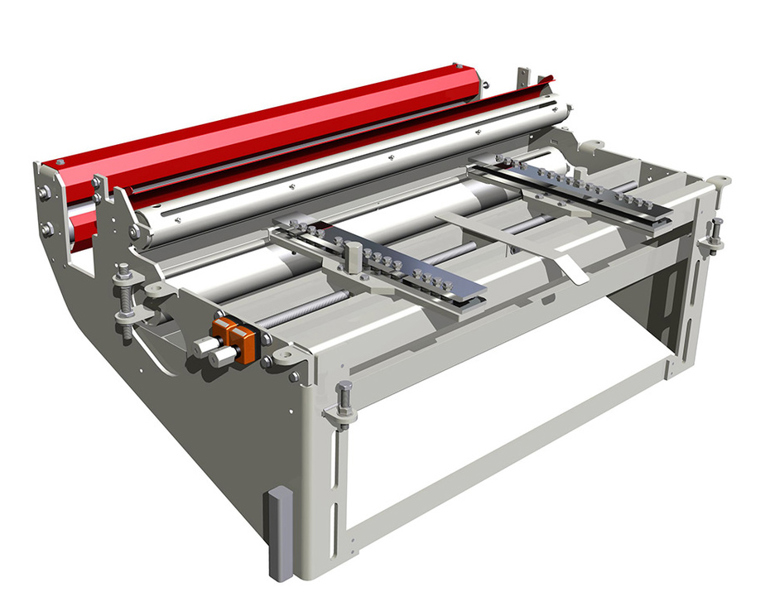

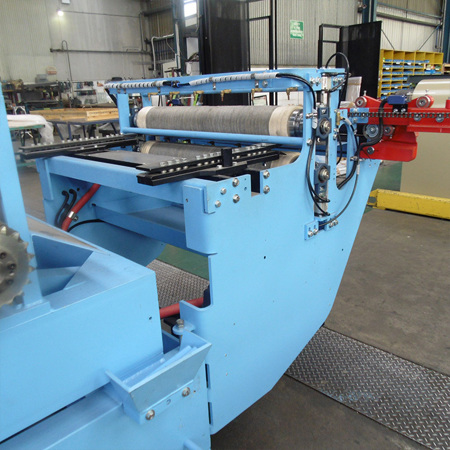

Infeed

Adjustable infeed guides to suit coil discrepancies and control under/overlap length; positioned via Siko type screw adjustment.
Built in lubrication system with felt wick applicator that applies lubricant to both sides of the sheet.
Manually operated hand slitter with D2 hardened steel knives to reduce waste material.

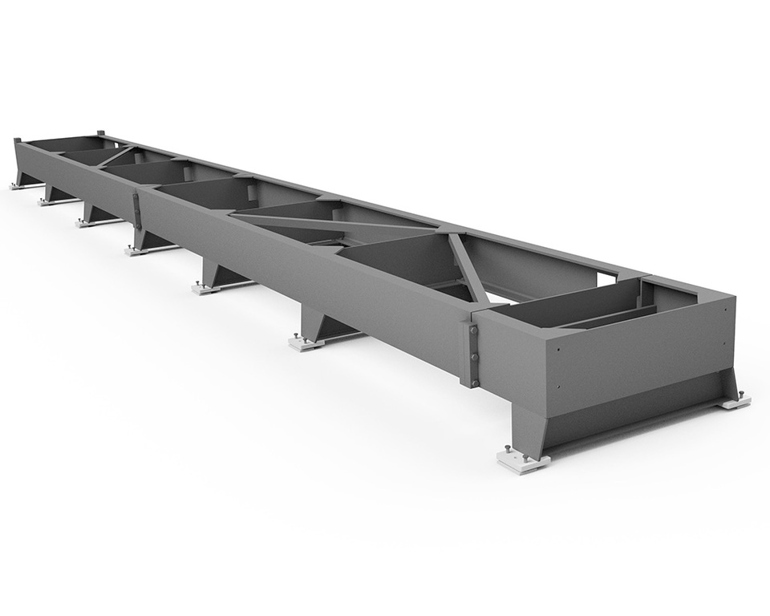

Chassis

Fabricated steel chassis in segments for easy handling, painted with a lacquer finish.
Reference marking and leveling feet for ease of alignment.
Locating pins make aligning rafts onto the chassis easy.

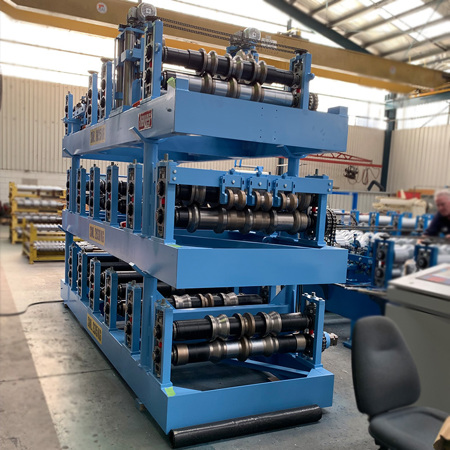

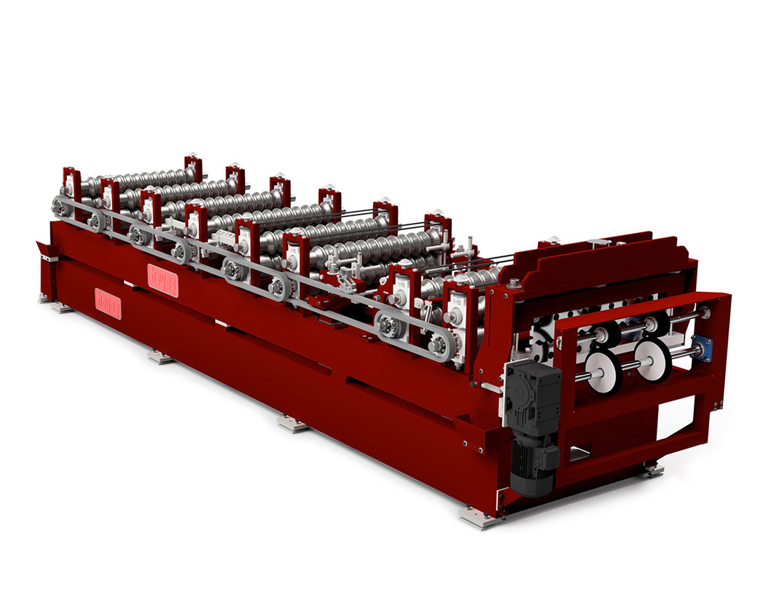

Rafts And Pedestals

Welded steel design with a lacquer paint finish, manufactured in segments to allow changeover without heavy lifting equipment.
Pedestals are a heavy-duty welded steel design with all working surfaces precision machined.
Each pedestal houses heavy-duty self-aligning bearings with tooling shaft locking collars.

Tooling

Precision CNC Machined.
K1045 grade solid steel with hard chrome finish.
2-inch diameter main tooling journals.
Corrective passes to adjust cover width and adjustable side tooling dependent on profile.

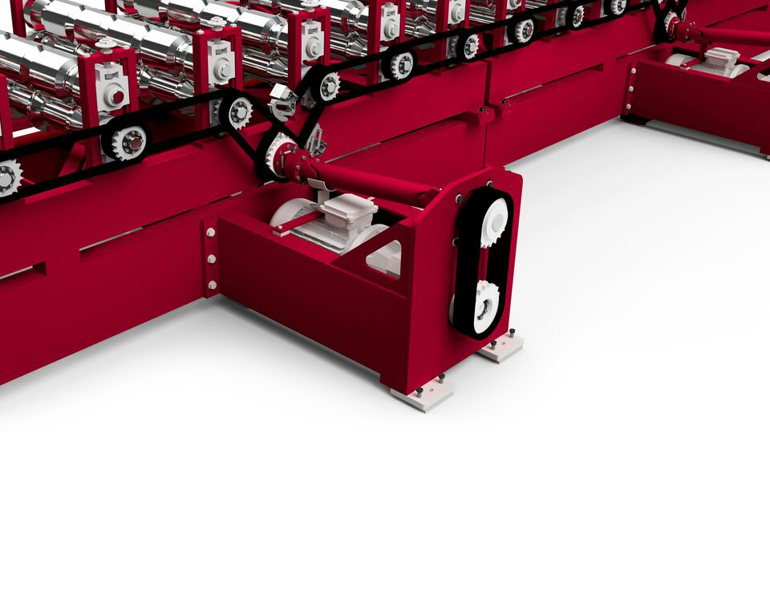

Rollformer Drive

Driven by dedicated VFD Electric motor mounted externally via driveshaft and constant velocity joints.
Power transmitted via heavy duty chain and sprocket.
Secured via Bonfix style couplings.
Each bottom roll of tooling is driven, with the first stations coupled via spur gear to aid traction.

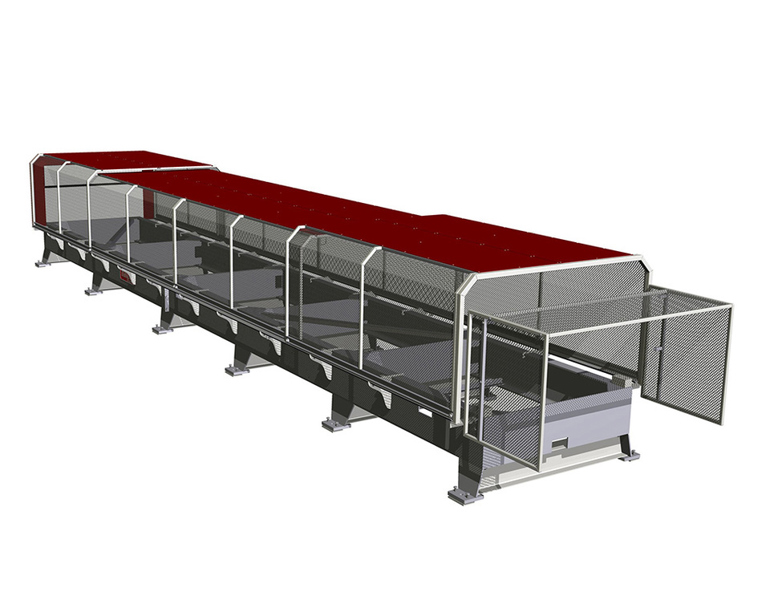

Guarding

Guarding covers tooling rolls and transmission.
Welded steel and mesh construction painted with lacquer finish.
2 Configurations available: 'Lift up' guards that open upwards with the aid of gas struts or interlocking tunnel guards that open via sliding on track and rail system.
All guards are equipped with interlocking safety switches integrated into the safety system.
Polycarbonate guarding option available.

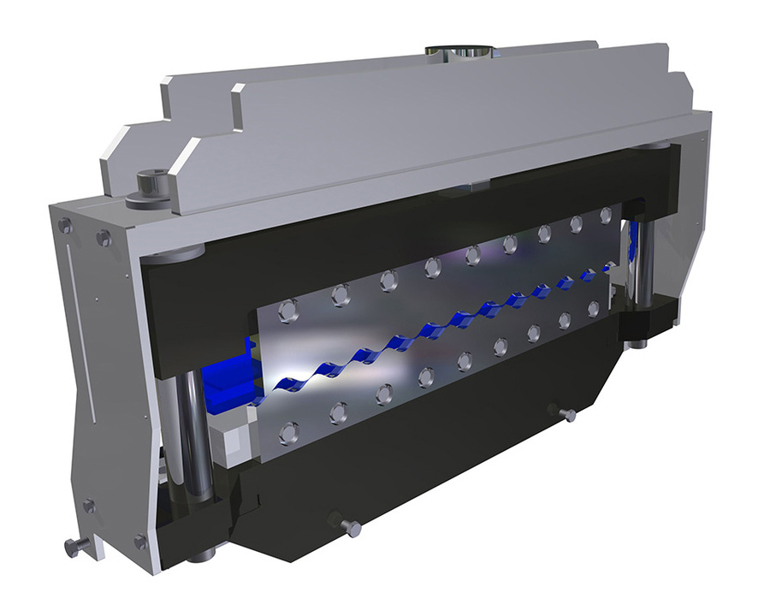

Guillotine

Heavy duty twin pillar post-cut guillotine.
Hydraulically operated via a dedicated power pack.
Replaceable D2 through-hardened steel blades that are precision ground and sharpened.

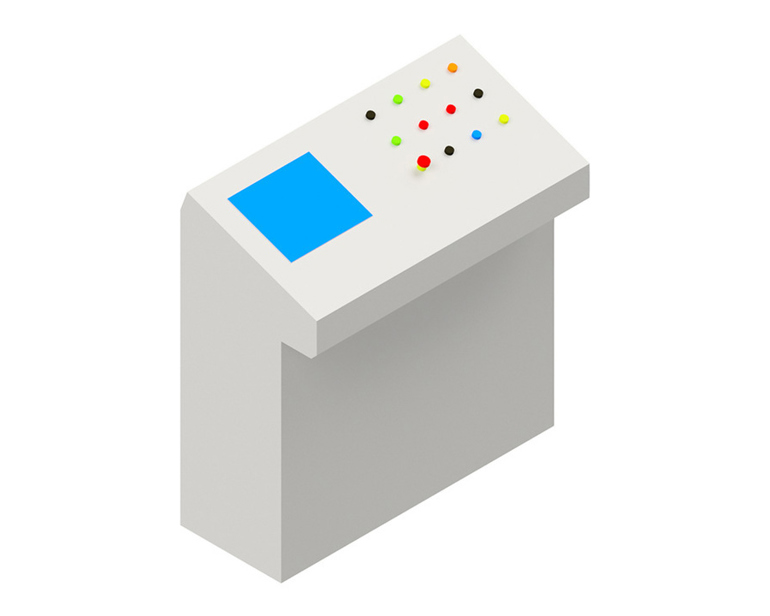

Control System

Dedicated operator console controlled via a PC and Hayes SmartCut multi batching control.
Fully instrumented controls capable of operating in manual or automatic modes.
Data download and order entry facilities, as well as fault-finding capability and operating safety system.
Can be configured to run select 3rd party control systems.
ERP integration capability (subject to controller type) with production reporting, scrap monitoring, etc.
