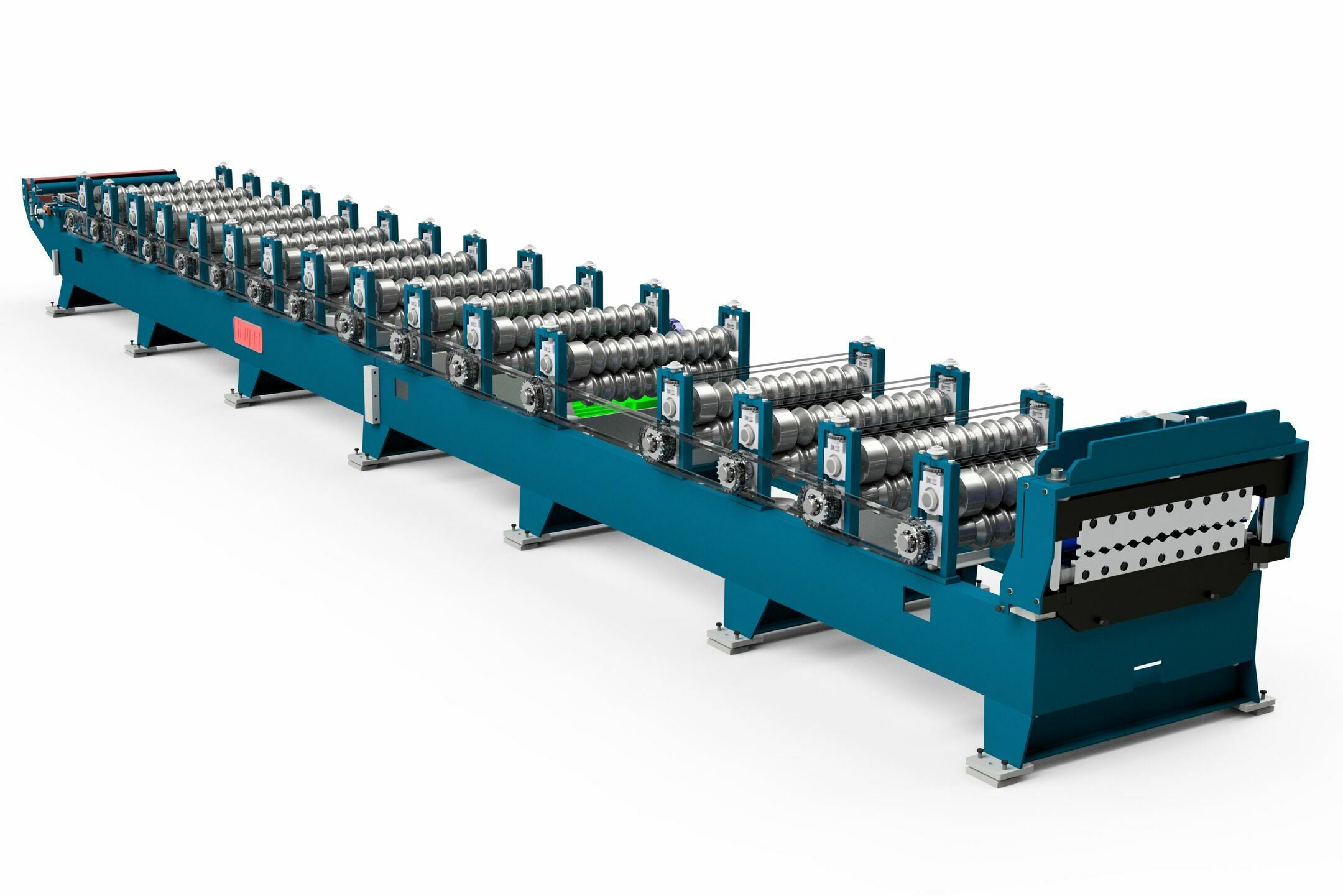

Hayes Single Level Rollformer

A Hayes Single Level line is great for high production runs of a single profile, for example, corrugate or fencing.

Hayes Single Level New Zealand-made Rollformers are available in a wide range of specifications that can be customized depending on your requirements.

From cladding and decking to roofing and fencing lines, they are designed to support most industry-standard coatings and coil sizes, including Galvalume/Zincalume, Coloursteel, Resin coatings and more. Hayes Single Level Rollformers are robust and built to last.

Single Level Rollformers can be equipped with Flying Shears in a feed-to-stop, or with high-production Flying Shears, a Powered Slitter, and a Plastic Applicator if required.

 ENQUIRE NOW

Single Level Rollformer Standard Components Details

Hayes International FAQs

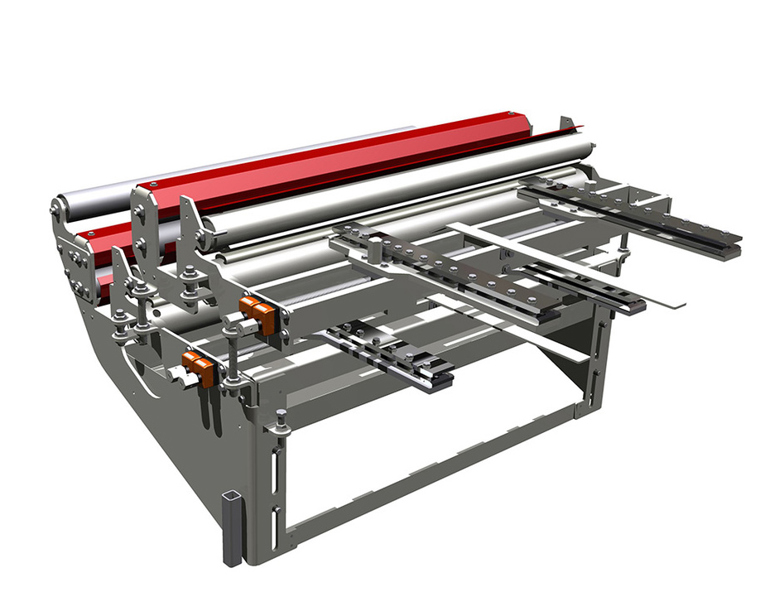

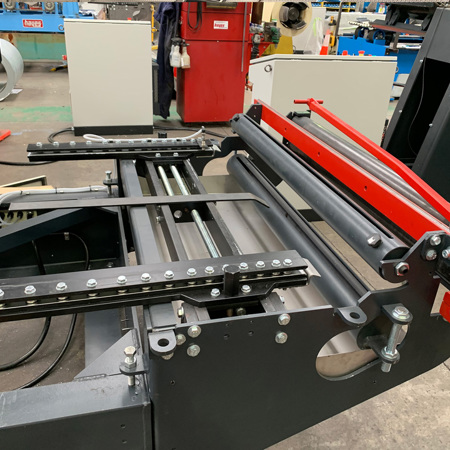

Infeed
  • Adjustable infeed guides to suit coil discrepancies and control under/overlap length; positioned via Siko-type screw adjustment.
  • Built-in lubrication system with felt wick applicator that applies lubricant to both sides of the sheet.
  • Manual pull-across slitter or a powered slitter with D2 hardened steel knives to reduce waste material.

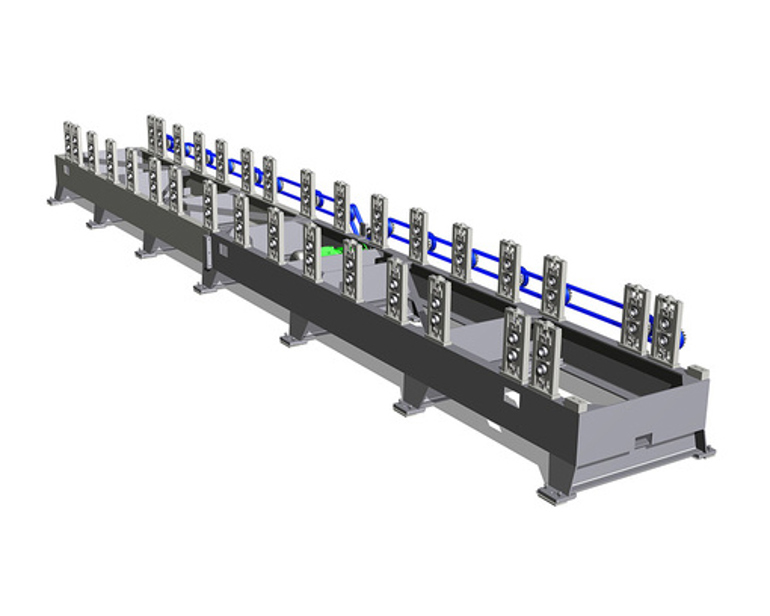

Chassis And Pedestals
  • Fabricated steel chassis in segments for ease of handling.
  • Reference marking and leveling feet for ease of alignment.
  • Pedestals are a heavy-duty welded steel design with all working surfaces precision machined.
  • Each pedestal houses heavy duty self-aligning bearings with tooling shaft locking collars.

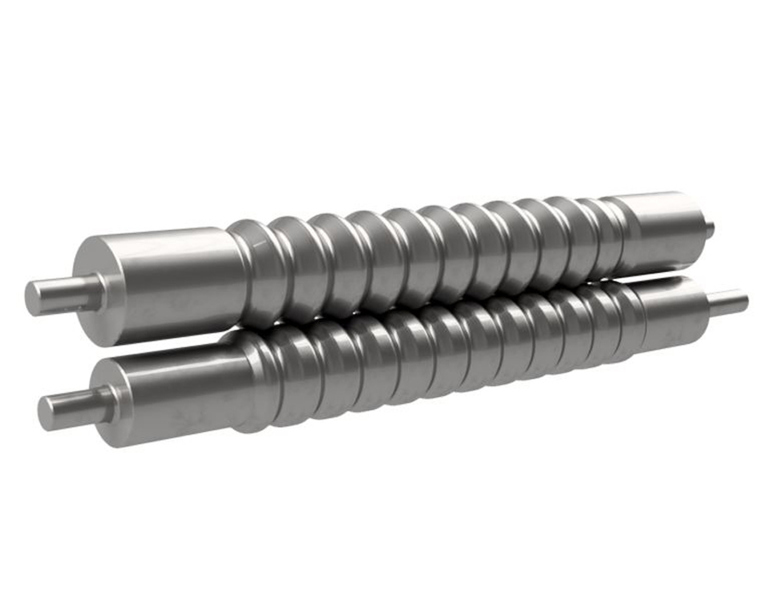

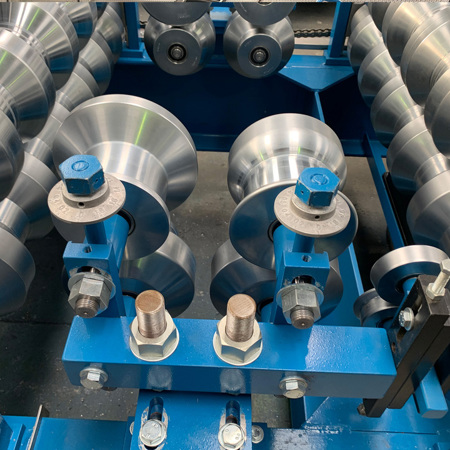

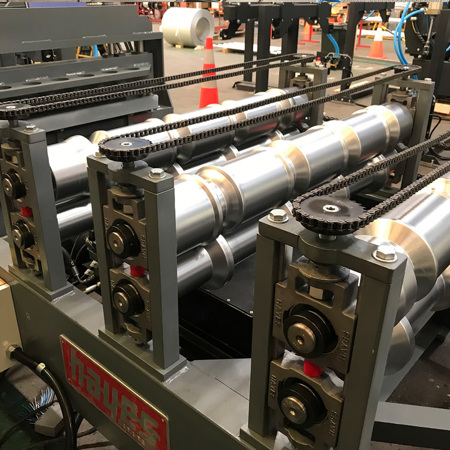

Tooling
  • Multiple tooling options are available depending on the profile spec and line speed required. All options are precision CNC machined in-house. These include:
    • Solid K1045 steel tooling rolls with a hard chrome finish.
    • Segmented D2 Steel through hardened to KC60 grade.

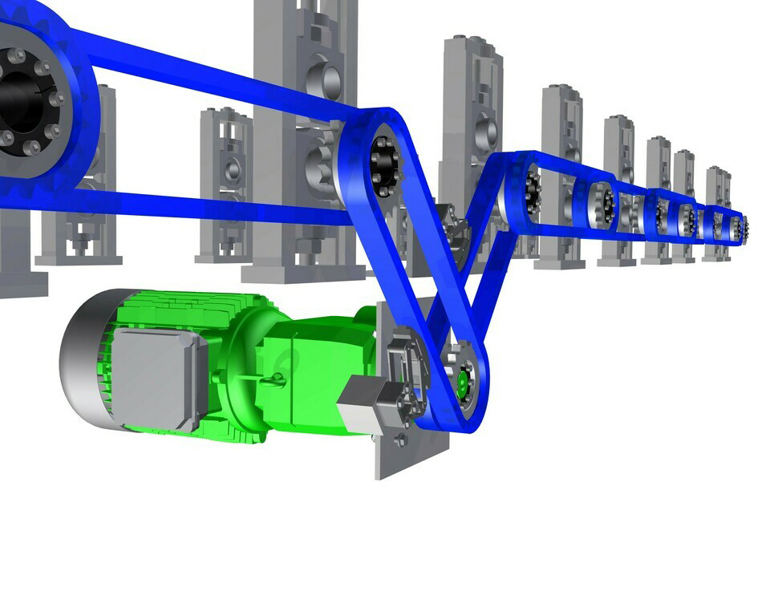

Rollformer Drive
  • Driven by dedicated VFD Electric motor mounted inside the chassis.
  • Power transmitted via heavy duty chain and sprocket.
  • Each bottom roll of tooling is driven, with first stations coupled via spur gear to aid traction.

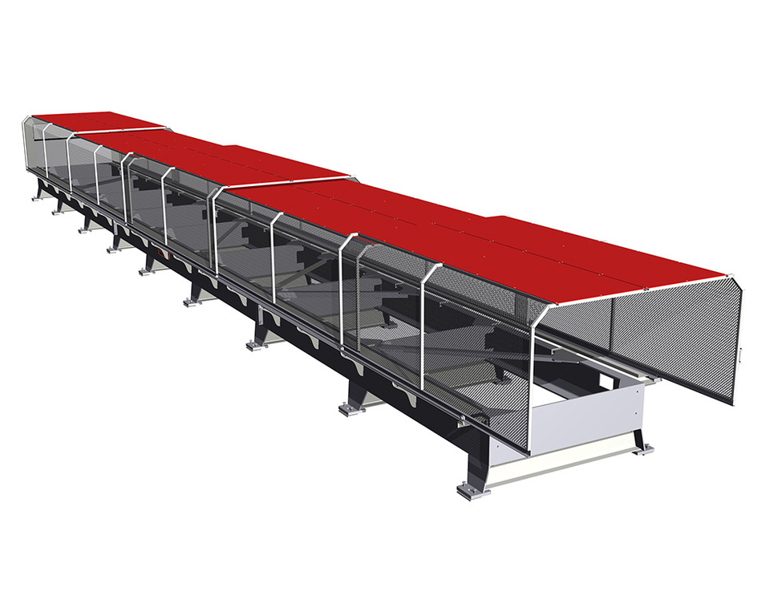

Guarding
  • Guarding covers tooling rolls and transmission.
  • Welded steel and mesh construction painted with lacquer finish.
  • 2 Configurations available: 'Lift up' guards that open upwards with the aid of gas struts, or interlocking tunnel guards that open via sliding on track and rail system.
  • All guards are equipped with interlocking safety switches integrated into the safety system.
  • Polycarbonate guarding option available.

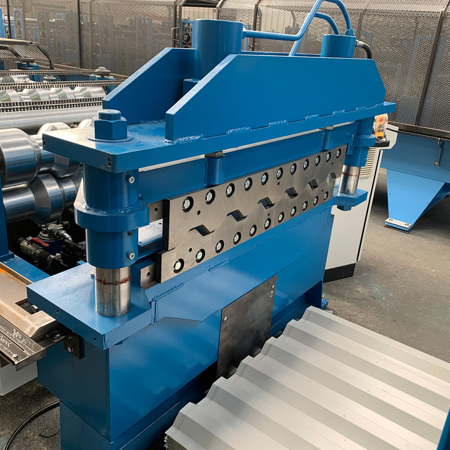

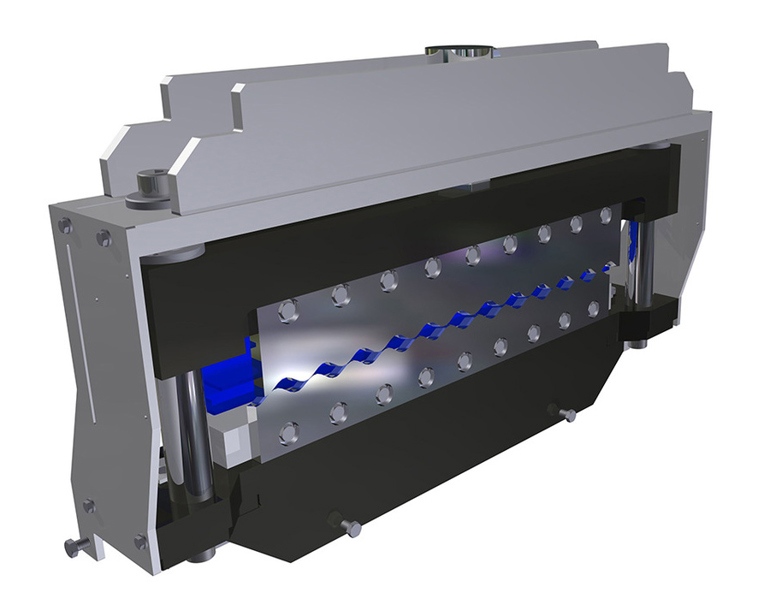

Guillotine
  • Heavy duty twin pillar post cut guillotine.
  • Hydraulically operated via dedicated powerpack housed inside the chassis.
  • Replaceable D2 through-hardened steel blades precision ground and sharpened.

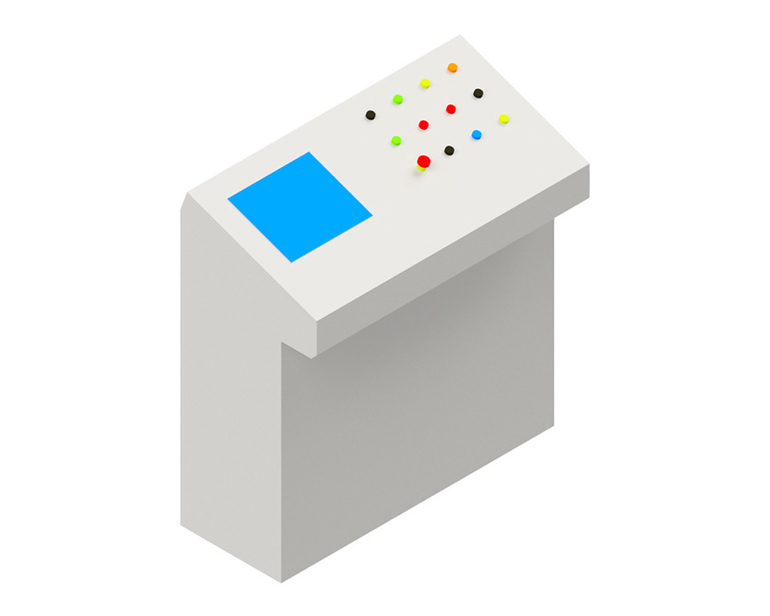

Control System
  • Dedicated operator's console controlled via a PC and Hayes SmartCut multi-batching control.
  • Fully instrumented controls capable of operating in manual or automatic modes.
  • Data download and order entry facilities, fault-finding capability and operating safety system.
  • Can be configured to run select 3rd party control systems.
  • ERP integration capability (subject to controller type) with production reporting, scrap monitoring, etc.

Request A Quote

If you’re ready to take the next step, let us know below. One of our team can get in touch to talk through your project. If you’d like to share a drawing, attach it below. We look forward to receiving your enquiry.

Optional Rollforming Equipment

Coil Handling

Hayes International offers a range of coil handling equipment, including Uncoilers, Coil Cars, and' hands-free’ systems for feeding coils.

Coil Car

Increase efficiency with Hayes Coil Cars. Easy coil loading without stopping production, featuring electric and hydraulic systems.

View Details

Hands Free System

Safer, easier coil feeding with Hayes 'Hands Free' system. Minimal operator intervention and pneumatic-driven peeler arm for efficient operation.

View Details

Linkage Uncoiler

6-tonne capacity with hydraulic drawbar system. Manual or automatic operation for seamless coil handling.

View Details

Twin Mandrel Uncoiler

Hayes Twin Mandrel Uncoilers offer fast, efficient coil changes for increased productivity. They have a 6-tonne capacity per side and 360° rotation.

View Details

Wedge Uncoiler

6-tonne capacity with hydraulic wedge system for reliable coil grip. Operates manually or automatically, featuring heavy-duty bearings and a dedicated hydraulic powerpack.

View Details

Finished Product Handling

Hayes International offers a range of product handling options, from fixed runout tables for manual offloading to drop tables. These tables stack finished products after each cut, ready for packing.

End Tamper

Compact, time-saving accessory for automatic sheet alignment post-cut. Available in pneumatic or electric operation.

View Details

Runout Table

Support sheets exiting machines to prevent damage. Single and dual level options with automatic pneumatic drop arms.

View Details

Optional Panel Mill Equipment And Extras

 Hayes International offers a range of optional equipment to aid in production and decrease down time.

Powered Slitter

Motorized upgrade for automatic coil slitting. Operates via Hayes Smart-cut or manually, ensuring efficiency and safety.

View Details

Flying Shear

Enhance production speed with continuous cutting. Electric motor and servo-driven for precise cuts at 60m/min. Compatible with Single Level Rollformers and coil widths of 940mm to 1250mm.

View Details

Plastic Applicator

Smoothly applies film to coils with no folds or air bubbles. Suitable for single and dual level machines. Manual film application and cutting for precise control.

View Details
Fletcher Dimond Roofing

Case Study: Fletcher Dimond Roofing

General Manager Damien Sauni needed a partner to build a fully custom Rollforming machine — one that could manage the high output of a diverse product offering, with minimal operator intervention. After a long relationship of 40 years, Hayes International was, in Damien’s eyes, the best partner for the job.

Read Story
Custom Metal Industries

Case Study: Custom Metal Industries

Custom Metal Industries is a 4th generation family business based out of Greenfield Indiana and has used Bradbury Group and Hayes Machines since 1960.  Custom Metal Industries and Hayes have grown together, in a true partnership lasting for generations.

Read Story

Spec A Machine

Hayes Rollformers are built for the most robust production lines. Hayes International has been manufacturing Rollformers for over 60 years and have a reputation as one of the world's top manufacturers of Rollformers and Rollforming equipment.
